當前位置：首頁 - 產品目錄

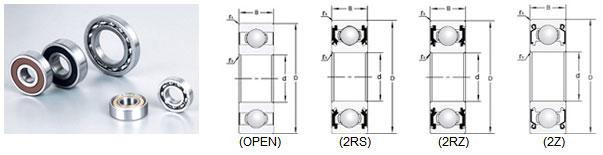

（深溝球軸承）英制 R 系列
軸承型號 外形尺寸(mm) 額定載荷(kN) 重量(kg)

d
mm in.

 D
mm in.		 B
mm in.		 r smin
mm in.		 Cr.0 Cor Mass
R168 6.350 .2500 9.525 .3750 3.175 .1250 0.1 .004 0.268 0.136 0.001
R168 6.350 .2500 12.700 .5000 3.175 .1250 0.15 .006 0.830 0.370 0.003
R4 6.350 .2500 15.875 .6250 4.978 .1960 0.3 .006 1.136 0.558 0.005
R4A 6.350 .2500

19.050 .7500

 5.556 .2188 0.4 .016 2.175 1.163 0.008
R6 9.525 .3750 22.225 .8750 5.556 .2188 0.4 .016 2.560 1.350 0.011
R8 12.700 .5000 28.575 1.1250 6.350 .2500 0.4 .016 3.930 2.230 0.018
R8-7 11.113 .4375 28.575 1.1250 6.350 .2500 0.4 .016 3.912 2.245 0.022
R10 15.875 .6250 34.925 1.3750 7.142 .2812 0.6 .024 4.620 2.790 0.037
R12 19.050 .7500 41.275 1.6250 7.938 .3125 0.6 .024 7.240 4.463 0.047
99502H 15.875 .6250 34.925 1.3750 7.938 .3125 0.8 .031 4.605 2.774 0.043
R14 22.225 .8750 47.625 1.8750 9.525 .3705 0.6 .024 7.740 4.960 0.075
R16 25.400 1.000 50.800 2.0000 9.525 .3705 0.6 .024 7.740 5.160 0.085
R18 28.575 1.1250 53.975 2.1250 9.525 .3705 0.6 .024 10.180 6.910 0.090
R20 31.750 1.2500 57.150 2.2500 9.525 .3705 0.8 .031 10.80 7.52 0.095
R22 34.925 1.3750 63.500 2.5000 11.100 .4370 0.8 .031 12.28 8.50 0.105
